Product Description

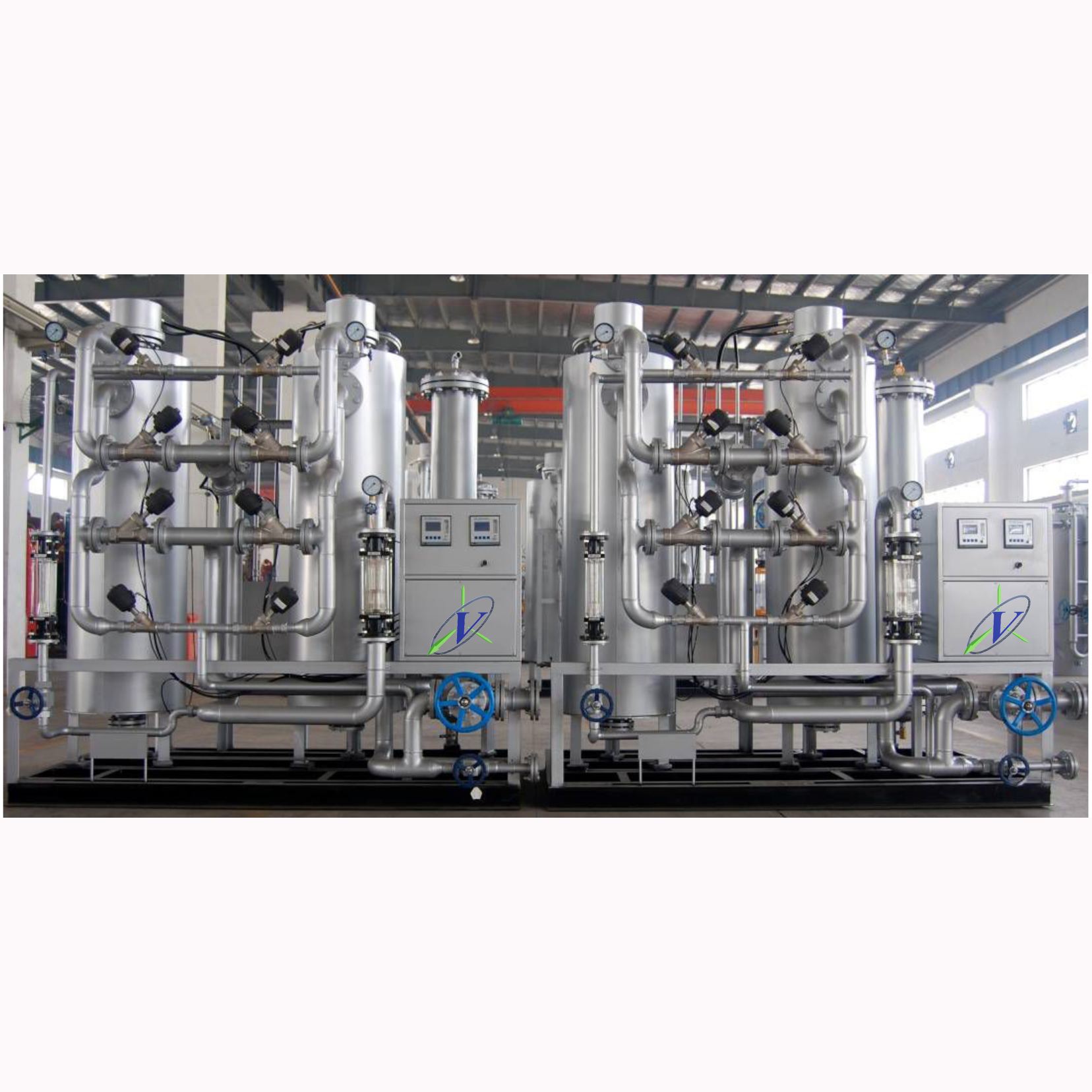

Hydrogen Generating Plant by PSA with H2 Purifying System

Price

Call for more Information781.519.4765

Request an Estimate





















Introduction

Pressure Swing Adsorption (PSA) is used to separate hydrogen gas from other gases by feeding the gas under a certain pressure. This separation process occurs in an adsorption tower and is advantageous in its low cost, low capacity, minimal maintenance requirements and user-friendly interface. The H2 Purifying System removes oxygen from hydrogen via a catalyst to obtain high purity H2 after adsorption and drying through the dust filter. The system can remove oxygen down to levels of 1ppm. Through one step of purification, the purity of the hydrogen generated can reach between 99.999~99.9999% and the dew point can be lower than -70°C; Through a second purification step, impurities can be lowered down to less than 0.1ppm and dew point can be lowered to -90°C .

Specifications

Capacity

10-5000NM3/H

Pressure

≤0.8Mpa

H2 Purity %

>98-99.999%

Dew Point

≤-60°C

Oxygen Content

≤1ppm
